NST-2004F (24VDC) - Ref. 42010204 cUL

Referencia: 42010204

Marca: Duelco

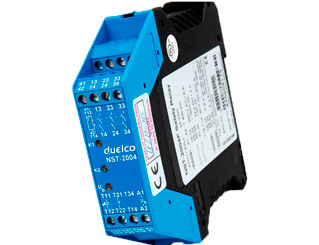

Relé de parada de emergencia NST-2004F 24V DC cUL

Uno de los relés más comunes en nuestro rango de relés de seguridad. Adecuado para la mayoría de las aplicaciones, como interruptores, cortinas de luz y contactos magnéticos. Transistor de salida para PLC-monitoreo.

El NST-2004F 24VDC ahora cumple con los requisitos de la nueva norma EN 81-20: 2014 y EN 81-50: 2014 y, por lo tanto, es ideal para el uso en ascensores.

Características técnicas:

Relé multifuncional NST-2004F 24V DC

Tensión Alimentación 24VDC.
Categoria 4 EN 954-1/ PL e EN ISO 13849-1
Salidas: 3 NA de seguridad + 1NC/1TR
Configurable para rearme manual o automático
Seleccionable con o sin protección contra cortocircuito
Formato compacto anchura 22,5 mm, con terminales fijos.
Canales de cableado: 1 o 2
LED de monitorización del canal 1 / canal 2
PL e
Certificación UL

---

Emergency stop relay NST-2004F 24V DC

One of the most common relays in our safety relay range. Suitable for most applications such as switches, light curtains and magnetic contacts. Transistor output for PLC-monitoring.

The NST-2004F 24VDC now meets the requirements of the new standard EN 81-20:2014 and EN 81-50:2014 and is therefore ideally suited for the use in elevators.

-----

Emergency STOP relay NST-2004

- Status-/fault indication via LEDs

- 3 NO safety outputs

- 1 transistor output or 1 NC contact

- Short circuit monitoring

- Suitable for light curtain applications

- UL certification

What can Duelco emergency stop relay NST-2004 offer you?

- Simplicity - Fast and easy installation via user friendly connection examples.

- Cat. 4 safety level with 3 NO duplicated output contacts.

- Status-/fault indication. LEDs for indication of the status of the internal relays, the outputs and the supply. The LED signalling can reduce trouble shooting time.

- 8-36VDC version suitable for trucks, loaders, cranes and various construction machines.

Technical facilities regarding safety requirements:

- Forced contacts

- Doubling of output contacts

- Internal / external redundancy (for two-pole E-stop)

- Manual, automatic or manual monitored reset (DIP-switch selection)

User’s advantages:

- Performace level e acc. to EN ISO 13849-1, cat. 4

- STOP category 0

- 3 NO contacts, AC1: 230 V AC / 6A ; DC1: 24V / 6A

- 2-channel operation with short circuit protection

- 1-channel operation
